Scientifically Designed Patented Paper for the Diagnosis of Heat Seal Dies

tipi paper color range - sealing die setup

"WORLD  WIDE"   ON-LINE  SALES

"FAST"  ON-LINE  ORDERING - SEE  BELOW

PLEASE   READ   ALL   **NOTICES   BELOW   TO UNDERSTAND   OUR   PRODUCT   SALES   TERMS

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**NOTICE: MAKE SURE THE SHIPPING ADDRESS IS CORRECT - OUR AUTOMATED SHIPPING SYSTEM PRINTS THE LABEL AND SHIPS YOUR ORDER WITHIN MINUTES - SHIPPING ADDRESS CANNOT BE CHANGED ONCE YOU PLACE THE ORDER - DO NOT EMAIL AND REQUEST TO CHANGE THE SHIPPING ADDRESS - IT CANNOT BE CHANGED - MAKE SURE THE SHIPPING ADDRESS IS CORRECT

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
How do I check if heat is being distributed evenly along the sealing die?

One method involves using a costly digital temperature probe or an infrared thermometer to measure the temperature of the sealing face in one-inch increments.  Another, more visual test, is to use heat-sensitive TP-PAPER®.  This special formulated Thermal Paper changes color when it comes in contact with heat. You can obtain this visual representation of your heat profile by placing a sheet of  TP PAPER® between the heat sealing dies as the dies close. The resulting dark-shaded impression gives you an indication of the heat seal profile. A uniformly shaded area on the paper indicates a uniformly heated die.  If some areas are darker or lighter than other areas, it’s time to consider making a change to / or adjusting your sealing dies.

DEFECTIVE  HEAT  SEAL  TP-PAPER HEAT SEAL SETUP AND HEAT SEALING DIE TEST - FOOD PACKAGING SEAL AND CUT DIE ® NORMAL  HEAT  SEAL

TP PAPER® is vital for the proper setup of Heat Sealing Dies and can save thousands of dollars in spoiled packaging.  This specialized Thermal Paper tests Food packaging equipment before a bad seal causes wasted product.  Thermal Sealing, Seal and Cut Equipment, and can be setup quickly and tested thoroughly. Excessive Die Pressure can be reduced with proper Thermal Sealing setup.  TP-PAPER® will be most effective for your Heat Seal Setup and Seal Testing.

Shown below is a simple Packaging Heat Seal Test application using TP-PAPER®. A circular seal and cut die contacts the package with minimum pressure.  The thermal sealing pattern on the sheet of TP PAPER® on the left shows a break in the heat seal pattern.  After proper heat seal setup ( adjustment of the sealing die ) the thermal sealing pattern of the TP-PAPER® shows on the right indicates a complete circular impression and a proper heat seal setup.  Not only does this seal testing help reduce waste, it also reduces excessive pressure wear of misaligned sealing dies.

TP-PAPER HEAT SEAL SETUP AND HEAT SEALING DIE TEST - FOOD PACKAGING SEAL AND CUT DIE®

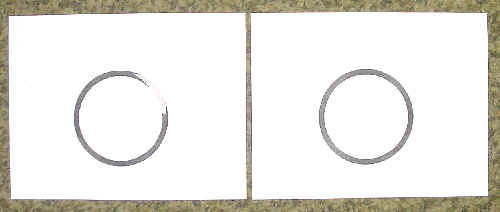

DEFECTIVE HEAT SEAL                     PERFECT HEAT SEAL

Testing is best in the Temperature range of  200 - 300 degrees F. (93 C-149 C)  Seal impression color ranges from:

tipi paper color range - sealing die setup®

Note: Please use extreme caution when working around heated dies. These dies are a burn hazard, as well as a crush hazard.

Make heat testing a routine part of your seal maintenance program.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

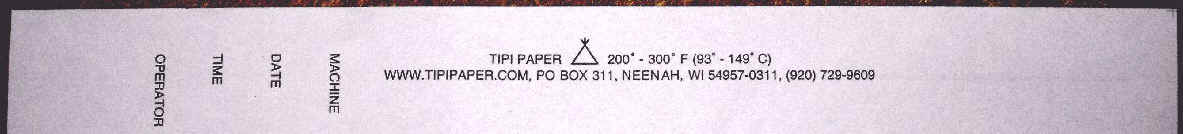

**NOTE: ALTHOUGH OUR SHEETS ARE PRINTED ALONG THE EDGE WITH OUR LOGO AND ADDRESS AND TEST HEADINGS

OCCASIONALLY A FEW SHEETS MAY BE MISSING THIS PRINTING, HOWEVER THEY ARE FULLY FUNCTIONAL - THIS IS NOT REASON FOR RETURN

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

NEW  -  "IMPROVED" TEMPERATURE   FORMULATION

**slightly thicker for better handling & better seal impressions

**note: sheet count per package has changed

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ORDER ON-LINE WITH CREDIT CARD   -   on-line payment = FASTEST DELIVERY

1-920-729-9609 PHONE

order here on-line with a credit card - note: we no longer process phone-in orders..

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**READ** - "WORLD  WIDE"   INTERNATIONAL  SALES

ALL FOREIGN ORDERS ARE SHIPPED VIA INTERNATIONAL PRIORITY MAIL

NOTE:  MANY COUNTRIES DO NOT HAVE PACKAGE TRACKING OR DELIVERY GUARANTEE - THEREFORE, WE CANNOT ASSUME RESPONSIBILITY FOR LOSS OR THEFT ONCE THE PACKAGE LEAVES THE U.S.

NOTE:  TP-PAPER IS NOT RESPONSIBLE FOR  DUTY,  TAXES,  TARIFFS,  OR  IMPORT  FEES - THESE ARE THE SOLE RESPONSIBILITY OF THE PURCHASER

NOTE:  WE CANNOT REFUND IF PRODUCT IS RETURNED  BECAUSE OF UNDELIVERABLE ADDRESS OR  MISS-DIRECTED DELIVERY  -  OR RETURNED  FOR NON-ACCEPTANCE BY ADDRESSEE  -  OR FOR ANY OTHER REASON

NOTE:  PURCHASER IS RESPONSIBLE TO PREPAY ALL SHIPPING & HANDLING CHARGES IF RETURNED PACKAGES ARE TO BE RE-SHIPPED A SECOND TIME

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

   CLICK  THE  "BUY NOW"  BUTTON  LOWER  LEFT  TO  ORDER

STANDARD - 8.5"x11"        POSTAGE RATES SHOWN ARE FOR US SALES ONLY - CHOOSE FROM SEVERAL MAILING OPTIONS

< click to order  8.5"x11" size 60 sheets +/-*only $50.00 plus $13.00 ea. p&h  U.S. POSTAGE  (see additional shipping costs & options at checkout for larger quantities)

NOTE:   8.5"x11" size is sold in units of approx. 60+/-* sheets - ea unit is packed in a clear plastic sleeve

(*sheet count is based on weight - not actual count)

2  PACKAGE  MINIMUM  FOR THIS SIZE ON "NEXT DAY" AND "2ND DAY"  SHIPPING

** ORDERS MUST BE RECEIVED BEFORE 10:00 AM C.S.T. TO PROCESS "NEXT DAY" & "2ND DAY" SHIPPING - 2 PACKAGE MINIMUM **

~~~~ MAKE SURE SHIPPING ADDRESS ALLOWS U.S. MAIL DELIVERY ~~~~~

~~~~~ IF RE-MAILING IS DUE TO AN UNDELIVERABLE MAILING ADDRESS - YOU WILL HAVE TO PAY FULL POSTAGE & HANDLING AGAIN ~~~~~

~~~~~ ALSO SEE RETURN / CANCELLATION  POLICY BELOW ~~~~~

PLEASE NOTE: PRODUCT SIZES CANNOT BE COMBINED AND MUST BE ORDERED SEPARATELY

WE CANNOT PROCESS 2ND PARTY BILLING FOR SHIPPING - NO EXCEPTIONS - WE CHARGE POSTAGE & HANDLING - ALL ORDERS ARE PP&A



**NOTICE:

WE CANNOT ASSUME RESPONSIBILITY FOR LOSS OR THEFT OR DAMAGE OR WRONG DELIVERY ADDRESS OR MIS-DIRECTED PACKAGES ONCE THE PACKAGE IS IN THE HANDS OF THE U.S. POST OFFICE - OR UPS - WE WILL ONLY INSURE PACKAGES WHERE "NEXT-DAY" DELIVERY IS SELECTED

.

LARGE - 17"x22"        POSTAGE RATES SHOWN ARE FOR  U.S. SALES ONLY - CHOOSE FROM SEVERAL MAILING OPTIONS



< click to order 17"x22" size (  15 sheets +/-* ) only $55.00 plus $21.00 ea. p&h U.S. POSTAGE  (see additional shipping costs & options at checkout for larger quantities)

NOTE: 17"x22" size is sold in units of 15 +/- sheets*  and BULK  packed

(*sheet count is based on weight - not actual count)

EXACT SHEET COUNT PACKS OF 15 SHEETS ARE AVAILABLE @ $110 PER PACK -  for this option call 920-729-9609 or email tppaperorder@aol.com

3  PACKAGE  MINIMUM  FOR THIS SIZE ON "NEXT DAY" AND "2ND DAY"  SHIPPING

** ORDERS MUST BE RECEIVED BEFORE 10:00 AM C.S.T. TO PROCESS "NEXT DAY" & "2ND DAY" SHIPPING - 3 PACKAGE MINIMUM **

~~~~~ MAKE SURE SHIPPING ADDRESS ALLOWS U.S. MAIL DELIVERY ~~~~~

.

NOTE:  17x22  NOT AVAILABLE FOR SHIPPING OUTSIDE THE U.S. - 8.5 x 11 WILL BE SUBSTITUTED

PLEASE NOTE: PRODUCT SIZES CANNOT BE COMBINED AND MUST BE ORDERED SEPARATELY

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

  CLICK THE  "BUY NOW"  BUTTON  TO  ORDER

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

** SHEET COUNT IS APPROXIMATE AS DETERMINED BY BASIS WEIGHT - ACTUAL COUNT MAY VARY

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

FREE   INFORMATION

To obtain FREE INFORMATION about TP-PAPER® - mail a large self addressed / stamped envelope.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

You can also mail your order with payment:

  TP-PAPER.COMTM - PO BOX 311 - NEENAH - WI - 54957-0311

1-920-729-9609 PHONE

order here on-line with a credit card - note: we no longer process phone-in orders.

for general information e-mail to tppaperorder@aol.com

IF YOU EXPERIENCE TROUBLE WITH THIS PAGE, PLEASE CALL THE NUMBER ABOVE

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

  TIPI PAPER HEAT SEALING        " TP-PAPER.COM "TM    TIPI-PAPER HEAT SEALING

TP-PAPER.COM - PO BOX 311 - NEENAH - WI - 54957-0311 - (920)729-9609

Manufacturing facility located in Oshkosh, Wisconsin

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

MORE  INFORMATION  ABOUT   TP-PAPER®

Scientifically Designed Patented Paper for the Diagnosis of Heat Seal Dies

 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

  TIPI PAPER®  -  PO Box 311  -  Neenah, WI 54957-0311  - (920)729-9609 -   www.tipipaper.com    tppaperorder@aol.com

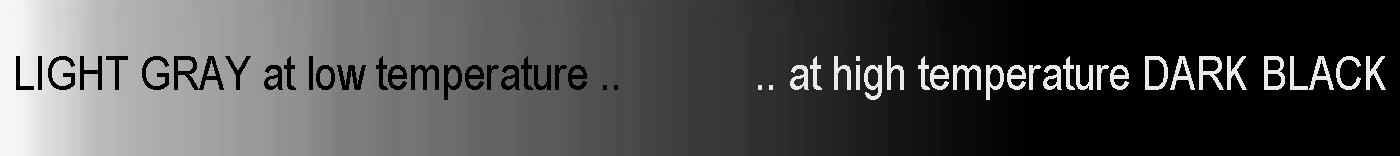

 Note: this Newly Formulated TIPI PAPER® turns BLACK.   Previous paper turned Blue/Gray. Temperature response is the same.

tipi paper color range - sealing die setup®

This will introduce you to TIPI PAPER®, a Temperature-Pressure sensitive paper that can be of great help to you in the operation of your heat sealing and processing equipment.  It is economical, so that it can be used on a routine basis to reduce your packaging waste and improve your package quality. The paper is used to check the sealing heads of your packaging equipment so that you may determine if there is “even” die pressure and sufficient heat for consistent seal.  This can be accomplished without breaking the web and interrupting production, and with a minimum loss of time and material.  This paper produces a sharp, visual, permanent image of the seal being made under production conditions.

TP-Paper® is quite sensitive.  It will not respond unless there is sufficient heat, but then the response is very fast (less than 0.1 second) and the picture of the seal is very crisp and sharp.  The impressions below show how the paper responds to the perforated sole plates of two different steam irons.

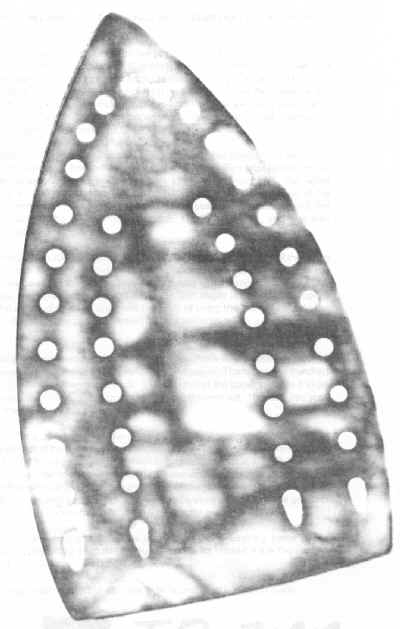

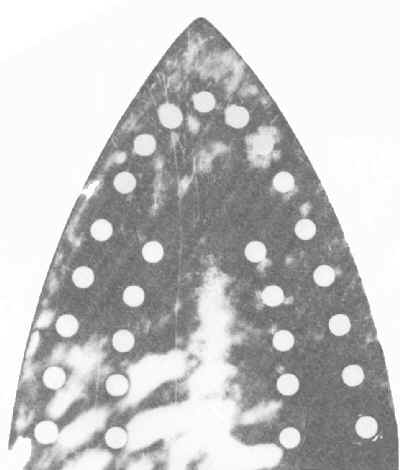

TP-PAPER IMPRESSION WITH STRAM IRON   ®                                                ®

The white spots are the steam holes where there was no pressure applied to the paper.  Note the sharp edges of the holes.  A cut or nick in a sealing die will show up in the same manner, and if a sealing die is misaligned, the area of lesser pressure will not be as dark s the rest of the impression.   Note the uneven heat pattern of the iron on the right.  You know where, and how well the die is sealing by the picture on the paper.

TP Paper® has a Temperature response of 200º to 300º F (93º to 149º C).  At the lower temperatures of the range the paper turns a light gray; the color then increases in intensity to a dark black as the temperature increases, up to the maximum of the range.

tipi paper color range - sealing die setup®

TP-Paper® is clean, easy to use, and is provided in packs of convenient sizes so it can be kept on hand at the machines where and when it is needed.  The 200º - 300º paper is designed for below normal heat-sealing operations and the “information sheet” suggests methods of using the paper to obtain the best results.  For the most effective results, place the paper between the two surfaces, which are to be sealed together.

TP Paper® comes in Two Sizes, 8-1/2" x 11"sheet, and 17" x 22" sheet.  (Note: 6.3" x 1000 ft roll is discontinued)  For larger areas the paper can easily be overlapped.  There are approximately sixty (60) 8 ½ x 11 inch sheets*, or approximately twenty-five 17 x 22 inch sheets* in a pack.  (17x22 sheets are bulk packed only - if you require individual fifteen (15) sheets packs you must place individual 1 pack orders)  The low cost of the paper permits it to be used on a routine basis, such as once a shift, or in a drying operation once a finished roll.  This assures you, the operator, and quality control that the equipment is performing properly.

If a sealing, drying, odor or adhesion trouble develops, the paper is invaluable.  The operator can determine immediately if the heat-pressure requirements of the operation are adequate without shutting down the machine for a pyrometer check.  He can determine if it is the packaging material or the machine that is at fault.  If it is the sealing head that is at fault, the paper can be used to check the effect of the corrective adjustments as they are made.  The paper provides a check on the entire seal area while a pyrometer checks only the temperature of the spot where it is placed.  Having a pack of paper at each station where it is to be used will produce the greatest saving in time and machine waste.  To be used most efficiently, it must be readily available.

Product Development people and troubleshooters can carry the paper with them.  Leaving some paper with a customer may save a trouble call by permitting the customer to determine if it is the sealing head or the packaging material that is producing poor seals.

The more you use TiPi Paper, the more you will realize the savings in time and waste.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

TIPI  PAPER®  -  INFORMATION  DATA  SHEET

   TIPI PAPER®  -  PO Box 311  -  Neenah, WI 54957-0311 - (920)729-9609 -   www.tipipaper.com     tppaperorder@aol.com

 TIPI PAPER® is a Temperature – Pressure sensitive paper that shows a crisp, clean picture of the entire seal area.  The paper turns a light gray color at the low end of the Temperature range and develops the maximum color at the high end of the Temperature range.  However, it will not change unless there is pressure, so the picture shows both Temperature and pressure variations in the seal.  For best results place the paper between the surfaces being sealed.  It is not necessary to break the web; tape the paper to the web passing through the machine.  The material being sealed will insulate and cushion the TIPI paper from the heat source as the actual seal in insulated.

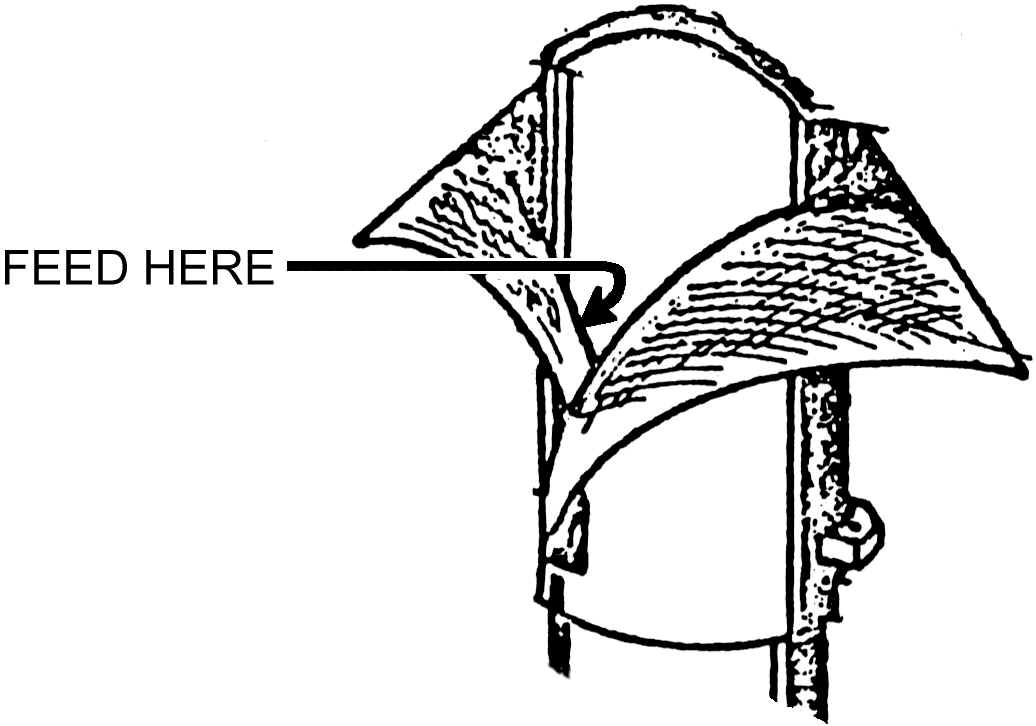

VERTICAL FORM & FILL MACHINES  To check the back seam seal of a vertical form and fill machine, feed a 2” or 3”wide strip of TIPI PAPER® into the back seam, between the two layers of film, while the machine is running.  To check the horizontal seams, tape a sheet of TIPI PAPER® to the forming web. Center the paper between the edges of the web.   If the TIPI PAPER® is wider than the “lay-flat” inches of the final package there will be two thickness of TIPI PAPER® in the ends of the seal.  If this causes a problem, cut the TIPI PAPER® to the “lay-flat” width of the final package.

The TP PAPER® should be taped all the way across the leading edge.  If it jams going between the forming collar and the fill tube, cut the paper at an angle as is done when threading the machine.  Position the paper down the web by using the eye spot of the design.  If there is no eye spot, use the idler as a “bench mark” to measure where the paper should be placed, to have it in the horizontal seal area.

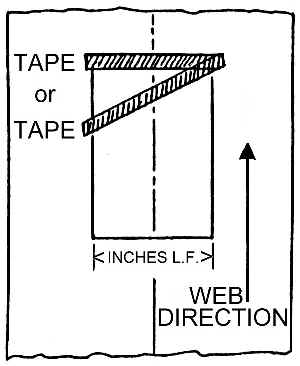

VACUUM & FLAT WEB MACHINES  To check these machines, tape TIPI PAPER® to the formed web, or one of the flat webs just before the top web, or the second web is sealed.  The object is to get the paper between the surfaces being sealed.  The sheets can be overlapped, if they are too small to cover the entire seal area.  Fasten down the leading edges with small pieces of tape and run the paper through the machine so that the second web is sealed to the TP PAPER®.  If the TP-PAPER® is run through the knives, the alignment of the knives and the seals can be checked.

TIPI PAPER® responds very quickly,   0.1 seconds or less, depending upon the Temperature and Pressure.



IF TIPI PAPER® DOES NOT CHANGE COLOR

  1. The Temperature of the web is less than the minimum Temperature of the TIPI PAPER®.
  2. There is insufficient Pressure to transfer the heat from the heat source to the TIPI PAPER®.
  3. There was insufficient time for the heat to soak through the materials being sealed.

A misaligned, nicked, or dirty die will reduce the Temperature or Pressure and this area will show up as a white spot, or a lighter colored area in the seal image on the TP PAPER®.

If the material being sealed, seals to the TP-PAPER® so that the color cannot be observed in the heat seal area, fold the TIPI PAPER®  over on itself and it will break apart at the paper/paper interface.

     NORMAL MINIMUM HEAT SEAL TEMPERATURE

Low Density Polyethylene                                                                                                                                245º F.  118º C.

High Density Polyethylene                                                                                                                                285º F.  141º C.

Polypropylene                                                                                                                                                      350º F.  177º C.

Ionomer (Surlyn)                                                                                                                                                  220º F.  104º C.

Ethylene Vinyl Acetate Copolymer (12%)                                                                                                      200º F.    93º C.

            Ethylene Vinyl Acetate Copolymer (18%)                                                                                                     170º F.    77º C.

tipi paper color range - sealing die setup

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

You can also mail your order with payment:

  TP-PAPER.COMTM - PO BOX 311 - NEENAH - WI - 54957-0311

1-920-729-9609 PHONE

order here on-line with a credit card - note: we no longer process phone-in orders.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**NOTE: ALTHOUGH OUR SHEETS ARE PRINTED ALONG THE EDGE WITH OUR LOGO AND ADDRESS AND TEST HEADINGS

OCCASIONALLY A FEW SHEETS MAY BE MISSING THIS PRINTING, HOWEVER THEY ARE FULLY FUNCTIONAL - THIS IS NOT REASON FOR RETURN

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**NOTICE: MAKE SURE THE SHIPPING ADDRESS IS CORRECT - OUR AUTOMATED SHIPPING SYSTEM PRINTS THE LABEL AND SHIPS YOUR ORDER WITHIN MINUTES - SHIPPING ADDRESS CANNOT BE CHANGED ONCE YOU PLACE THE ORDER - DO NOT EMAIL AND REQUEST TO CHANGE THE SHIPPING ADDRESS - IT CANNOT BE CHANGED - MAKE SURE THE SHIPPING ADDRESS IS CORRECT

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**NEW  -  "IMPROVED" TEMPERATURE   FORMULATION

**slightly thicker for better handling & better seal impressions

**note: sheet count per package has changed

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

for general information e-mail to tppaperorder@aol.com

IF YOU EXPERIENCE TROUBLE WITH THIS PAGE, PLEASE CALL THE NUMBER ABOVE

OUR WEB PAGE CAN BE LOCATED BY SEARCHING TEEPEE PAPER, TEPEE PAPER, TEE PEE PAPER, TE PEE PAPER, TP-PAPER ®, TP-PAPERS ®, TP PAPER ®, TP PAPERS ®, TIPI PAPER ®, TIPI PAPERS ®, TPPAPER ®, TPPAPERS ®

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**READ** - "WORLD  WIDE"   INTERNATIONAL  SALES

ALL FOREIGN ORDERS ARE SHIPPED VIA INTERNATIONAL PRIORITY MAIL

NOTE:  MANY COUNTRIES DO NOT HAVE PACKAGE TRACKING OR DELIVERY GUARANTEE - THEREFORE, WE CANNOT ASSUME RESPONSIBILITY FOR LOSS OR THEFT ONCE THE PACKAGE LEAVES THE U.S.

NOTE:  TP-PAPER IS NOT RESPONSIBLE FOR  DUTY,  TAXES,  TARIFFS,  OR  IMPORT  FEES - THESE ARE THE SOLE RESPONSIBILITY OF THE PURCHASER

NOTE:  WE CANNOT REFUND IF PRODUCT IS RETURNED  BECAUSE OF UNDELIVERABLE ADDRESS OR  MISS-DIRECTED DELIVERY  -  OR RETURNED  FOR NON-ACCEPTANCE BY ADDRESSEE  -  OR FOR ANY OTHER REASON

NOTE:  PURCHASER IS RESPONSIBLE TO PREPAY ALL SHIPPING & HANDLING CHARGES IF RETURNED PACKAGES ARE TO BE RE-SHIPPED A SECOND TIME



~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

     CLICK  THE  "BUY NOW"  BUTTON  LOWER  LEFT  TO  ORDER

STANDARD - 8.5"x11"        POSTAGE RATES SHOWN ARE FOR US SALES ONLY - CHOOSE FROM SEVERAL MAILING OPTIONS



< click to order  8.5"x11" size 60 sheets +/-*only $50.00 plus $13.00 ea. p&h  U.S. POSTAGE  (see additional shipping costs & options at checkout for larger quantities)

NOTE:   8.5"x11" size is sold in units of approx. 60+/-* sheets - ea unit is packed in a clear plastic sleeve

(*sheet count is based on weight - not actual count)



2  PACKAGE  MINIMUM  FOR THIS SIZE ON "NEXT DAY" AND "2ND DAY"  SHIPPING

** ORDERS MUST BE RECEIVED BEFORE 10:00 AM C.S.T. TO PROCESS "NEXT DAY" & "2ND DAY" SHIPPING - 2 PACKAGE MINIMUM **

~~~~~ MAKE SURE SHIPPING ADDRESS ALLOWS U.S. MAIL DELIVERY ~~~~~

PLEASE NOTE: PRODUCT SIZES CANNOT BE COMBINED AND MUST BE ORDERED SEPARATELY

WE CANNOT PROCESS 2ND PARTY BILLING FOR SHIPPING - NO EXCEPTIONS - WE CHARGE POSTAGE & HANDLING - ALL ORDERS ARE PP&A



**NOTICE:

WE CANNOT ASSUME RESPONSIBILITY FOR LOSS OR THEFT OR DAMAGE OR WRONG DELIVERY ADDRESS OR MIS-DIRECTED PACKAGES ONCE THE PACKAGE IS IN THE HANDS OF THE U.S. POST OFFICE - OR UPS - WE WILL ONLY INSURE PACKAGES WHERE "NEXT-DAY" DELIVERY IS SELECTED

.

LARGE - 17"x22"        POSTAGE RATES SHOWN ARE FOR  U.S. SALES ONLY - CHOOSE FROM SEVERAL MAILING OPTIONS

< click to order 17"x22" size (  15 sheets +/-* ) only $55.00 plus $21.00 ea. p&h U.S. POSTAGE  (see additional shipping costs & options at checkout for larger quantities)

NOTE: 17"x22" size is sold in units of 15 +/- sheets*  and BULK  packed

(sheet count is based on weight - not actual count)

EXACT SHEET COUNT PACKS OF 15 SHEETS ARE AVAILABLE @ $110 PER PACK -  for this option call 920-729-9609 or email tppaperorder@aol.com

3  PACKAGE  MINIMUM  FOR THIS SIZE ON "NEXT DAY" AND "2ND DAY"  SHIPPING

** ORDERS MUST BE RECEIVED BEFORE 10:00 AM C.S.T. TO PROCESS "NEXT DAY" & "2ND DAY" SHIPPING - 3 PACKAGE MINIMUM **

~~~~~ MAKE SURE SHIPPING ADDRESS ALLOWS U.S.P.S. MAIL DELIVERY ~~~~~

NOTE:  17x22  NOT AVAILABLE FOR SHIPPING OUTSIDE THE U.S. - 8.5 x 11 WILL BE SUBSTITUTED

PLEASE NOTE: PRODUCT SIZES CANNOT BE COMBINED AND MUST BE ORDERED SEPARATELY

.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

  ~~~~~ MAKE SURE SHIPPING ADDRESS ALLOWS U.S.P.S. MAIL DELIVERY ~~~~~

~~~~~ IF RE-MAILING IS DUE TO AN UNDELIVERABLE MAILING ADDRESS - YOU WILL HAVE TO PAY FULL POSTAGE & HANDLING AGAIN ~~~~~

~~~~~ ALSO SEE RETURN / CANCELLATION  POLICY BELOW ~~~~~

.



  CLICK  HERE  TO  LEARN  HOW  TO  TEST  LONGER  SEALS



   CLICK THE  "BUY NOW"  BUTTON  TO  ORDER

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

** SHEET COUNT IS APPROXIMATE AS DETERMINED BY BASIS WEIGHT - ACTUAL COUNT MAY VARY

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~



~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**NOTE:  RETURN / CANCELLATION  POLICY

IN THE UNLIKELY EVENT THAT A RETURN IS WARRANTED, ALL RETURNS WILL REQUIRE A "RETURN AUTHORIZATION NUMBER" AND MUST BE RETURNED IN ORIGINAL CONDITION IN ORIGINAL UNOPENED PACKAGING  -  ALL RETURNS WILL INSPECTED  - OPENED OR DAMAGED PRODUCT WILL NOT BE REFUNDED -  ALL RETURNS ARE SUBJECT TO A 20% RESTOCKING FEE  -  ORIGINAL SHIPPING AND HANDLING CHARGES ARE NOT REFUNDABLE - NO EXCEPTIONS

ORDERS CANCELLED PRIOR TO SHIPMENT ARE SUBJECT TO A 5% PROCESSING FEE WHICH WILL BE DEDUCTED FROM THE REFUND

ORDERS CANCELLED PRIOR TO SHIPMENT CANNOT REFUND SALES TAX WHICH WILL BE DEDUCTED FROM THE REFUND

**NOTICE:

WE CANNOT ASSUME RESPONSIBILITY FOR LOSS OR THEFT OR DAMAGE OR WRONG DELIVERY ADDRESS OR MIS-DIRECTED PACKAGES ONCE THE PACKAGE IS IN THE HANDS OF THE U.S. POST OFFICE - OR UPS - WE WILL ONLY INSURE PACKAGES WHERE "NEXT-DAY" DELIVERY IS SELECTED

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**NOTE: ALTHOUGH OUR SHEETS ARE PRINTED ALONG THE EDGE WITH OUR LOGO AND ADDRESS AND TEST HEADINGS

OCCASIONALLY A FEW SHEETS MAY BE MISSING THIS PRINTING, HOWEVER THEY ARE FULLY FUNCTIONAL - THIS IS NOT REASON FOR RETURN

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

**NOTICE: MAKE SURE THE SHIPPING ADDRESS IS CORRECT - OUR AUTOMATED SHIPPING SYSTEM PRINTS THE LABEL AND SHIPS YOUR ORDER WITHIN MINUTES - SHIPPING ADDRESS CANNOT BE CHANGED ONCE YOU PLACE THE ORDER - DO NOT EMAIL AND REQUEST TO CHANGE THE SHIPPING ADDRESS - IT CANNOT BE CHANGED - MAKE SURE THE SHIPPING ADDRESS IS CORRECT

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
